Shed Wiring Tips for Electricians on Acreage

If you own a shed on acreage and find yourself constantly managing extension cords from your home, it is imperative to ensure that your shed is properly wired. Whether your shed is a simple storage unit requiring just a light and a power point or a fully equipped workshop housing welders and compressors, adhering to the proper procedures is crucial. In NSW, the only legal way to achieve this is by hiring a licensed electrician.

This comprehensive guide will detail the necessary steps to provide electricity to your shed, outlining the installation requirements your electrician will need, and offering a cost estimate tailored for the Mid North Coast.

Maximise Your Shed’s Power Supply: Cable Run Insights for Effective Wiring

The most vital aspect of any shed wiring project is the efficient transmission of power from your main switchboard to the shed itself. On larger properties, this distance can extend to 30, 50, or even over 100 metres. As the distance increases, the diameter of the cable must also be larger to effectively manage voltage drop. Understanding this is essential for maintaining optimal performance in your electrical setup.

When planning cable runs, you face two primary options:

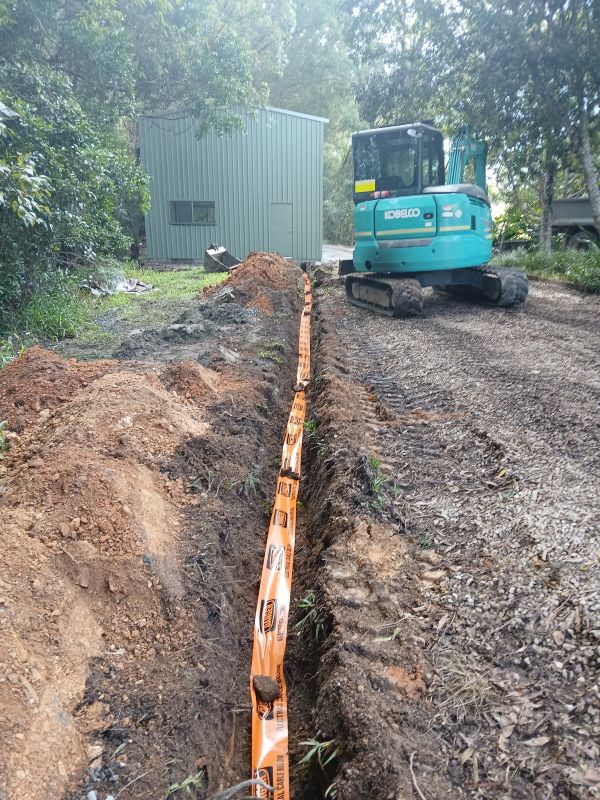

• Underground cable run — This method is the most popular and aesthetically pleasing choice. Your electrician will install heavy-duty cable through orange conduit buried at least 500mm deep, or deeper if heavy vehicles frequently traverse the area. This approach protects the cable from adverse weather conditions, wildlife interference, and falling branches, making it the preferred option for most properties with acreage.
• Overhead cable run — Although this option is less common, it may be necessary in areas with solid rock or complicated terrain that hinders trenching. Overhead runs must adhere to proper clearance heights and require support poles, which can significantly increase costs.

For most properties around Bellingen, Coffs Harbour, and the Mid North Coast, an underground cable run is the recommended choice. Your electrician in Bellingen can assess your site and recommend the most efficient route for installation.

Establish a Reliable Power Supply for Your Shed: The Importance of a Dedicated Sub-Board

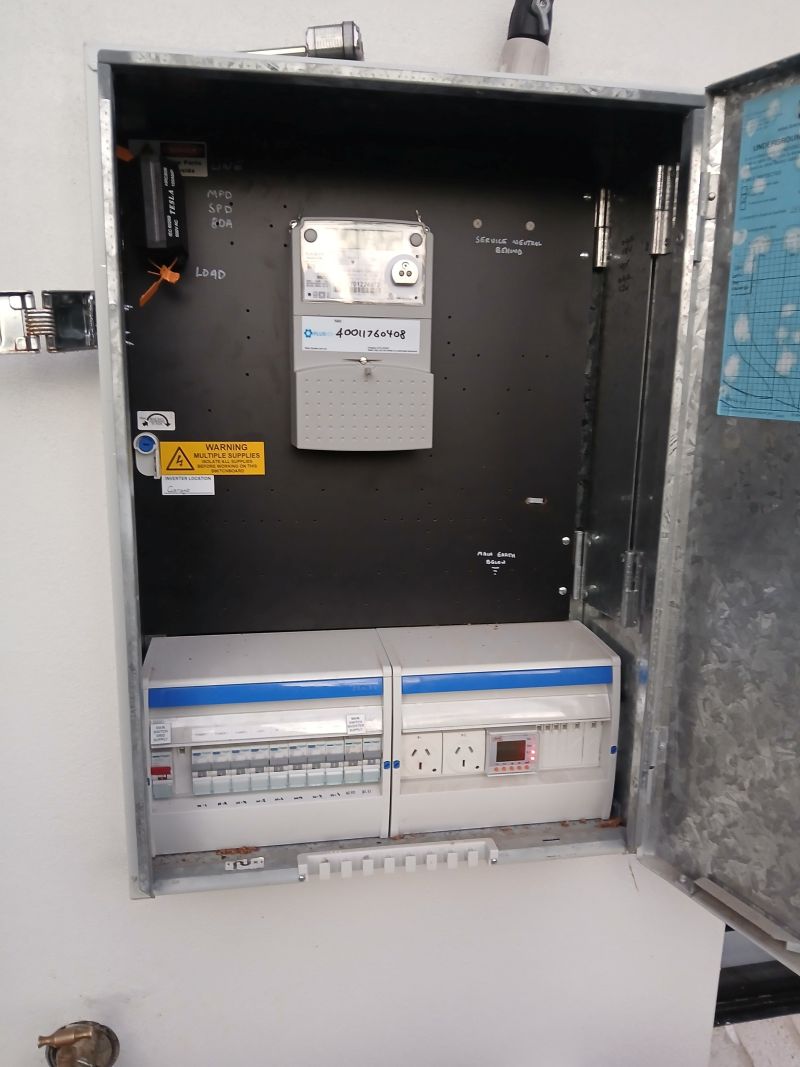

Simply running a single cable to the shed and plugging in appliances is inadequate. Any shed that requires a substantial power supply must be equipped with a dedicated sub-board, often known as a distribution board. This functions as a mini switchboard located inside the shed, effectively managing all circuits and ensuring safety.

Your sub-board will typically include the following essential components:

• Main switch — This feature allows you to isolate all power to the shed independently from the main house, providing enhanced safety and control.
• RCDs (Residual Current Devices) — As mandated by NSW electrical regulations, these devices ensure rapid power cut-off in milliseconds in case of a fault, which is especially critical for safety in a shed environment where moisture, dust, and damaged leads can be common.
• Circuit breakers — These devices provide individual protection for each circuit within the shed, covering lighting, general power, and dedicated tool circuits, thus greatly enhancing safety and functionality.

If your house’s switchboard is outdated, your electrician may recommend upgrading it to accommodate the additional load directed to the shed, ensuring reliability and safety.

What Key Features Should Be Installed Inside Your Shed for Optimal Use and Functionality?

The specific installations your electrician performs inside the shed will depend entirely on its intended use. Here’s a detailed overview of typical setups that enhance usability and overall efficiency.

Designing an Efficient Basic Storage Shed: Essential Installations

If your shed primarily serves as a storage space for tools, a ride-on mower, or other gear, consider implementing the following setup:

• LED batten lights — One or two ceiling-mounted LED batten lights will efficiently illuminate the entire area, improving visibility and accessibility significantly. Your electrician can provide expert advice on the best lighting arrangement based on the shed’s dimensions and layout.
• Two to four general power points — These will be adequate for plugging in a charger, a radio, or a drop saw when needed. It is advisable that standard power points and switches are on a single circuit for convenience.
• External light — A weatherproof LED light positioned above the door ensures visibility, preventing fumbling around in the dark when entering or exiting the shed, which can be quite inconvenient.

Configuring a Fully Equipped Powered Workshop Shed: Advanced Wiring Solutions

If you frequently use power tools such as drop saws, bench grinders, and dust extractors, a more advanced wiring configuration is essential to accommodate your diverse needs:

• Multiple circuits — By having separate circuits for lighting, general power, and dedicated tool outlets, you can prevent flickering lights whenever a tool is activated, ensuring a smooth workflow.
• Higher-rated power points — Providing 15-amp or 20-amp outlets is crucial for accommodating heavier tools that require more power, thus enhancing functionality.

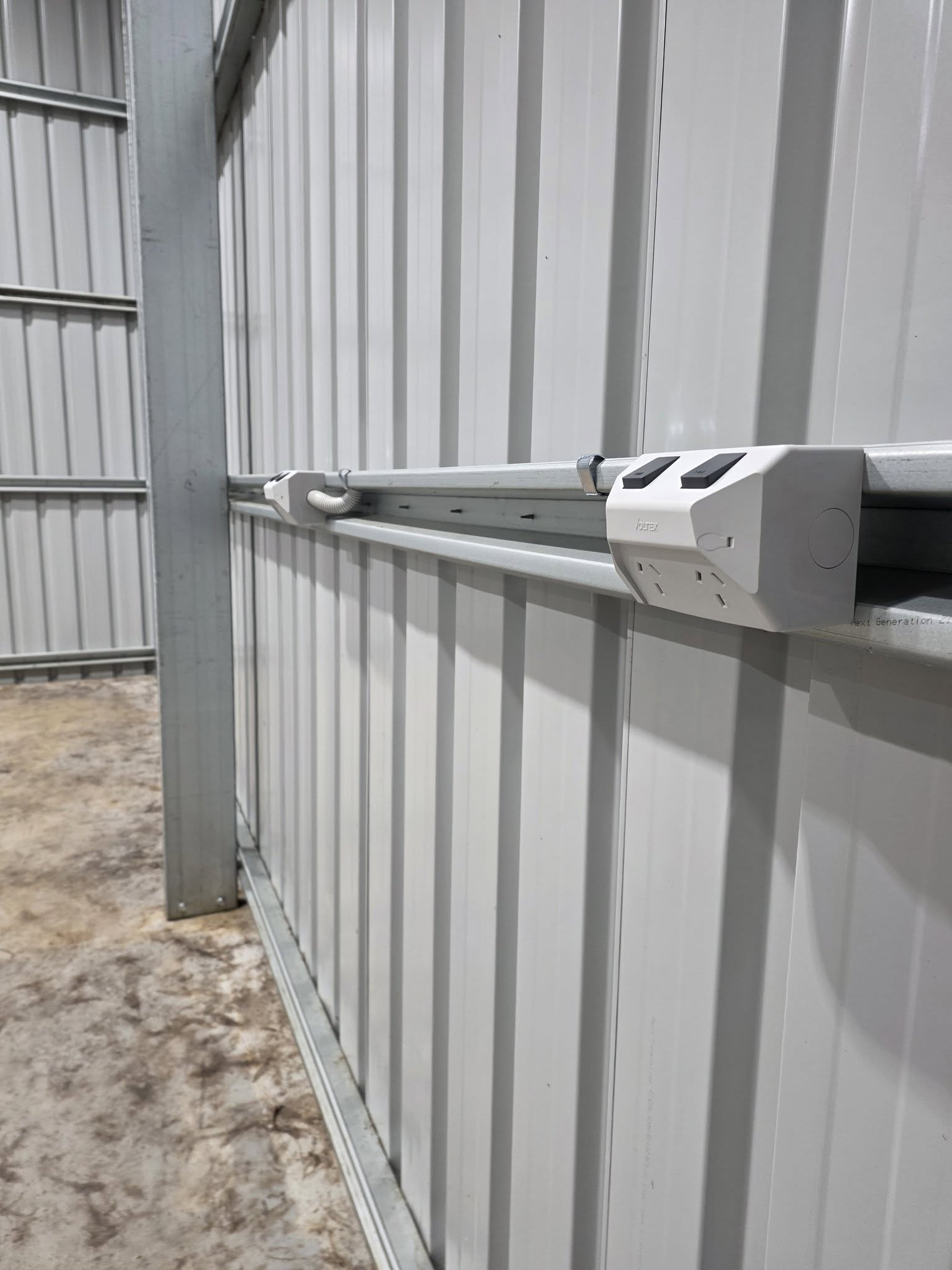

• Strategically placed additional power points — Install outlets at bench height rather than just at skirting level, taking into account the actual locations of your workbenches for ease of access, which is essential for efficiency.
• Dedicated lighting — Ensure brighter, more focused lighting is installed over work areas, possibly utilising LED high-bays for larger sheds to significantly improve visibility and safety.

For detailed guidance on configuring dedicated circuits for heavy tools, refer to our article, Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which offers comprehensive insights.

Establishing a Comprehensive Workshop with Three-Phase Power Supply: Considerations and Requirements

If you plan on operating heavy-duty machinery, such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power might not suffice. In such cases, considering a three-phase power supply is advisable for optimal performance.

Three-phase power provides more consistent and higher-capacity energy, which is essential for running heavy machinery. Your electrician will need to:

• Arrange for a three-phase supply from your energy distributor, which may take several weeks on the Mid North Coast due to logistical considerations, so planning ahead is key.
• Install a three-phase sub-board in the shed, equipped with appropriate breakers and RCDs to ensure safety and compliance with regulations.
• Run heavier cabling — Keep in mind that three-phase cable runs are generally more expensive, especially over long distances, which will impact your budget.
• Install three-phase outlets — These industrial-grade sockets must be rated for the equipment being utilized to ensure safety and functionality, which is critical for operational integrity.

If you are uncertain whether three-phase power is necessary for your requirements, check out our article, Do I Need Three-Phase Power on My Property? This resource elaborates on when it is beneficial and when a well-designed single-phase setup will be adequate. We also provide complete installations for three-phase switchboards should you opt for that route for your workshop.

Why Surge Protection Is Essential for Your Shed’s Safety and Equipment Longevity

Properties situated on acreage in the Mid North Coast often experience severe lightning storms. A direct or nearby lightning strike can cause extensive damage to everything inside your shed, jeopardising tools, chargers, refrigerators, and all equipment connected to power.

Installing a high-quality surge protection device within the sub-board acts as affordable insurance. This device absorbs voltage spikes before they can reach your valuable equipment, thus safeguarding your investments. For sheds housing expensive tools or a workshop setup, surge protection is absolutely necessary for maintaining operational integrity and extending the lifespan of your equipment.

If your property utilises a generator for backup power, your electrician can also install a generator changeover switch. This switch enables the shed (and the house) to switch to generator power safely during outages, ensuring continuous operation and peace of mind.

What Are the Regulations Regarding Council Approval and Compliance in NSW for Shed Wiring?

There are several crucial regulations to be aware of when planning your shed wiring:

• All electrical work in NSW must be carried out by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to reduce labour costs, all electrical tasks—including cabling, connections, sub-board installation, and more—must be executed by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion of the work.
• Depth requirements for underground cables must comply with AS/NZS 3000 (the Wiring Rules). Your electrician will manage this aspect of the installation effectively, ensuring compliance with all legal standards and codes.
• If the shed is new construction, development approval may be required depending on your council and the shed’s dimensions. While the electrical work itself does not necessitate a separate permit, the overall building project might, so it is essential to check with your local council.

Hack-It Electrical Solutions operates under NSW Electrical Contractor Licence #230609C. Every job we complete comes with a compliance certificate to ensure safety and legality, thus providing peace of mind for all our clients.

Estimating Costs for Shed Wiring on Acreage: What to Expect in Your Budget

Each shed presents unique challenges—distance from the house, whether you need single-phase or three-phase power, the number of circuits required, and soil conditions for trenching all contribute to the overall costs. Here’s a rough guide for the Mid North Coast:

• Basic shed wiring (light + a few power points, short cable run) — Starting from $2,500, this budget covers essential installations for simple needs and setups.
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500, this setup accommodates a variety of tools and equipment, offering flexibility.
• Full workshop setup with three-phase, dedicated circuits, and surge protection — Starting from $8,000+, this investment ensures robust performance for heavy-duty applications and machinery.

Longer cable runs (50m+), rocky terrain requiring a rock saw, or upgrades for three-phase supply will all increase the total cost. The most reliable method to receive an accurate estimate is to have your electrician conduct a site visit, evaluate the cable route, and understand the intended use of the shed.

For a customised quote tailored to your specific setup, please call us at 0402 079 803 or contact us here for a consultation to discuss your needs.

Answering Your Most Common Questions About Shed Wiring: Expert Insights

Can I Wire My Shed Myself in NSW? Understanding the Legal Requirements

No, all electrical work in NSW must be performed by a licensed electrician. This includes running cables to the shed, installing the sub-board, power points, lighting, and all other tasks. Attempting DIY electrical work is not only illegal but also poses significant safety hazards, potentially leading to severe consequences. Your electrician will provide a Certificate of Compliance upon completing the work, ensuring that all standards are met and adhered to.

How Deep Should Underground Cable Be Buried for Safety and Compliance?

According to the Australian Wiring Rules (AS/NZS 3000), underground cables within conduit must be buried at least 500mm deep under standard conditions. If vehicles are likely to drive over the cable run, the depth typically must be increased to 600mm or more to ensure safety. Your electrician will determine the appropriate depth for your specific property, ensuring compliance with all regulations and requirements.

Do I Need a Separate Meter for My Shed? Understanding Power Supply Options

In most situations, no. The sub-board in your shed connects back to your main house switchboard and draws power from the same meter. A separate meter is only required if the shed is used as a distinct dwelling or commercial premises, which will necessitate further discussions with your council and energy distributor to ensure compliance with regulations and requirements.

How Long Does It Take to Wire a Shed on Acreage? Project Timeline Expectations

A typical shed wiring project—comprising trenching, cable installation, sub-board setup, lights, and power points—usually takes one to two days to complete once the trench is prepared. If you are digging the trench yourself, your electrician can provide you with the specific route and depth prior to beginning the work. Three-phase installations often take longer due to the need for arranging the supply connection with the distributor to ensure a proper setup.

Can I Run Power From the Shed to Other Buildings? Exploring Wiring Options

Yes, it is possible, but each additional building will require its own appropriately rated cable run and may need its own sub-board based on electrical load requirements. Your electrician can design the entire layout across multiple buildings, ensuring that the cabling and switchboard capacity are sufficient from the outset, rather than making subsequent additions that could lead to complications or safety issues.

Ensure Safe and Efficient Wiring for Your Shed: Expert Solutions Available

If you live on acreage around Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere on the Mid North Coast, Hack-It Electrical Solutions is here to ensure your shed is wired correctly—whether it’s a simple light-and-power setup or an extensive three-phase workshop tailored to your specific needs.

Contact us at 0402 079 803 or reach out via our website to schedule a site visit. We will assess your property, identify the most suitable cable route, and provide you with a clear, comprehensive quote tailored to your specific requirements.
