Solar Switchboard Upgrade for Ducted Air Conditioning in Chelmer

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade that supports a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—avoiding the need for any three-phase upgrade.

Why You Should Trust Precision Electrical & Air for Your Switchboard Upgrade

This homeowner in Chelmer embarked on a comprehensive renovation project that included the installation of a powerful 17.86kW single-phase solar photovoltaic (PV) system, a 30kWh modular battery storage solution, and complete blackout protection for the home. Additionally, a modern ducted air conditioning system was incorporated into this extensive project. Prior to connecting these advanced systems, it was vital to evaluate and upgrade the existing switchboard to ensure it complied with current standards and could effectively manage the increased electrical loads associated with these installations. This proactive approach ensured both safety and efficiency.

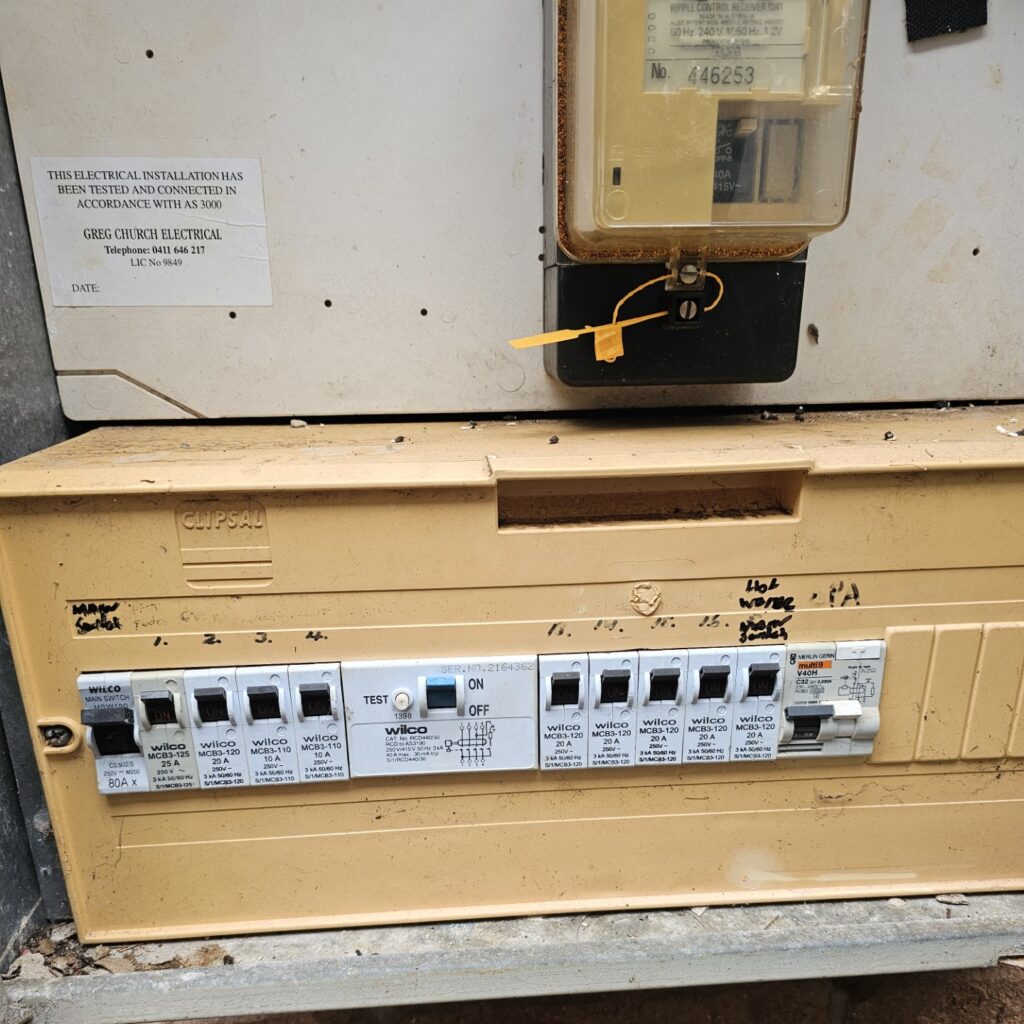

The existing switchboard had become outdated and was equipped with obsolete circuit breakers and a single Residual Current Device (RCD) that offered protection for the entire property. It was insufficient for integrating both solar energy and battery storage. Furthermore, the circuit labeling was inadequate, rendering it non-compliant with the modern standards governing energy generation systems. This lack of compliance posed significant risks to the effective operation of the upgraded systems, necessitating immediate attention and rectification.

Is a Three-Phase Upgrade Really Necessary for Your Solar System?

When evaluating the specifications of a 17.86kW solar system paired with a 30kWh battery, many homeowners mistakenly assume that a three-phase upgrade is essential. Such misunderstandings can lead to significant financial burdens for the homeowner, potentially costing between $3,500 and $6,000. Moreover, this misconception can result in prolonged waiting periods for approval from Energex regarding network modifications, further complicating the installation process.

Conducting a Thorough Technical Assessment of Your Needs

The determination of whether a three-phase upgrade was essential hinged on two critical factors. Firstly, the supply cable for the residence was strategically located near the street junction, allowing for an effective voltage rise calculation for solar energy export to comfortably stay within Energex’s single-phase limit of 2%. Secondly, the design of the solar and battery systems was aimed at decreasing demand on the grid instead of increasing it. Therefore, from a technical standpoint, there was no justification for a three-phase upgrade from the network’s perspective. Additionally, the ducted air conditioning system was confirmed to meet the required parameters for efficient single-phase operation.

As a result, the decision was made to retain the single-phase configuration. The switchboard was upgraded to ensure it could safely and efficiently accommodate all new electrical loads without compromising safety or compliance with current standards, thereby providing peace of mind for the homeowner.

Thorough Examination of Installed Components for Enhanced Safety

The existing switchboard underwent a complete dismantling and extensive reconfiguration. Every circuit breaker was replaced with new, correctly rated units sourced from Eaton, and each circuit was meticulously labelled for easy identification and safety. The circuits were carefully segregated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning were all assigned dedicated circuits to enhance safety and ensure compliance with current regulations.

A timer was strategically integrated into the hot water service to ensure it operates efficiently during peak solar generation hours. This thoughtful addition minimises dependence on the grid by optimising the use of the solar system’s output throughout the day. Furthermore, a dedicated Hot Water Service (HWS) contactor circuit was installed to guarantee proper functionality and reliability.

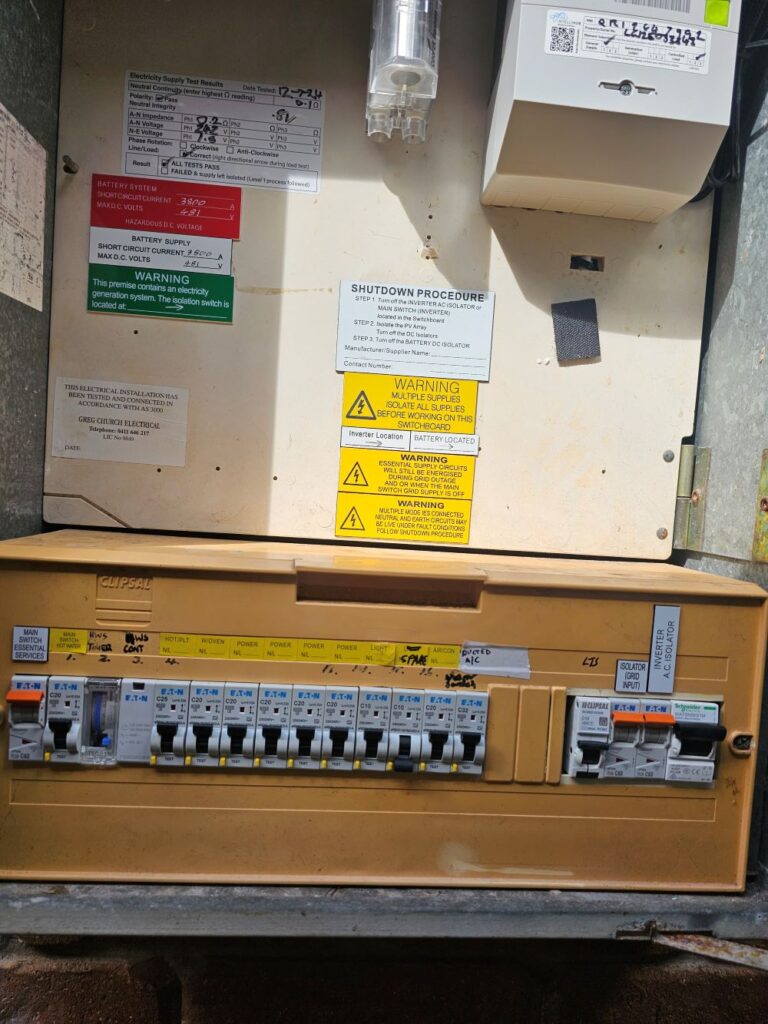

The upgraded switchboard was designed for seamless integration with both the solar inverter and battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly stated the battery system rating at 481V DC with a short-circuit current of 3800A, alongside multiple supply warnings and a complete shutdown procedure. All electricity supply tests were conducted and successfully passed, with documentation secured for the switchboard’s compliance.

The finished switchboard now fully complies with the latest Australian standards, ensuring it is appropriately set up for any future electrical service work that may be required at the property, providing both security and confidence for the homeowner.

Advantages of the Successful Upgrade for Homeowners

The homeowner has successfully acquired a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary costs associated with a three-phase upgrade that was not essential for their specific situation, resulting in significant savings and peace of mind.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be essential in certain scenarios, they are not universally required for all properties. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your specific situation, allow Precision Electrical & Air to conduct a thorough analysis. We will provide you with a clear and concise assessment based on your cable distance, load requirements, and the actual criteria that Energex will use to approve your property.

We guarantee that there will be no upselling; you will receive an accurate answer tailored to your home’s needs.

Your Frequently Asked Questions Addressed

How do electricians assess the need for three-phase power for solar systems?

The evaluation relies on two primary factors: voltage rise and load demand. Electricians assess the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system’s export remains within this limit, a single-phase configuration is sufficient. However, should the voltage rise exceed this threshold, three-phase power becomes necessary to distribute the export load across three conductors, effectively keeping the voltage rise within acceptable parameters.

Does having a larger solar system automatically require three-phase power?

No, the size of the system alone does not dictate the necessity for three-phase power. A 17.86kW solar system can function legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are introduced to the property. The critical elements to consider include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not merely the kilowatt rating of the solar panels.

What is voltage rise, and why is it important for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, which leads to a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same electrical line. Network distributors such as Energex enforce strict limits, typically set at 2% for single-phase connections. Electricians must calculate whether your solar system’s performance remains within this limit to determine if single-phase or three-phase power is appropriate for your property.
