Shed Wiring Tips: Essential Installation Advice for Electricians

If you have a shed on your acreage property and are tired of relying on extension leads from your home, it is imperative to consider having it professionally wired for safety and efficiency. Whether you need a basic storage shed equipped with just a light and a power point, or a fully functional workshop that utilises welders and compressors, following the correct procedures is vital. In NSW, the only legal and safe way to achieve this is by engaging a licensed electrician who can ensure compliance with local regulations.

This comprehensive guide provides detailed steps on how to supply power to your shed, outlines the necessary installations your electrician will conduct, and gives you an estimate of the costs you can expect in the Mid North Coast region.

Kickstart Your Shed Wiring Project with an Effective Cable Run

The foundation of any successful shed wiring project is establishing a dependable power source that connects your main switchboard to your shed. Depending on the size of your property, this distance can differ significantly, ranging from 30 to over 100 metres. The longer the cable run, the larger the cable size needed to effectively manage voltage drop, ensuring that your shed receives the necessary power efficiently.

You essentially have two main options for your cable run:

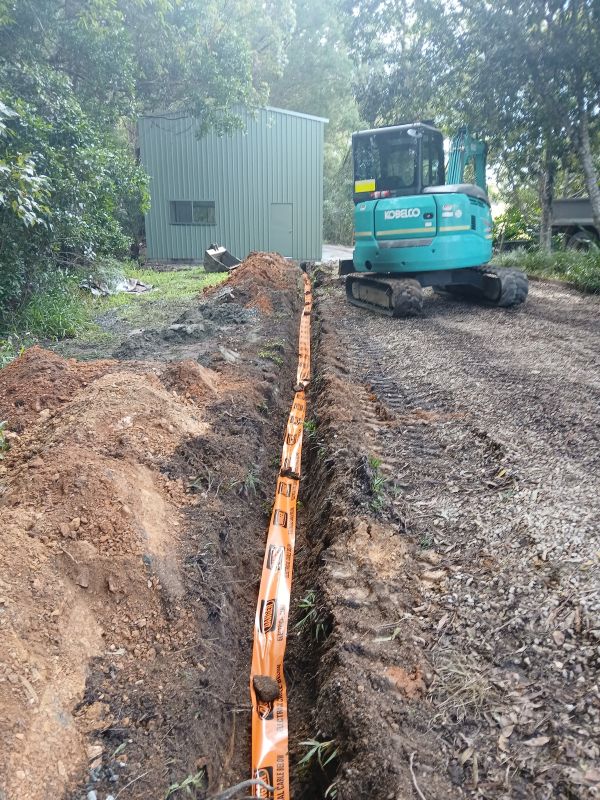

• Underground cable run — This method is the preferred choice due to its aesthetic appeal and safety. A licensed electrician will install a heavy-duty cable within orange conduit, buried at least 500mm deep (or deeper if vehicles are expected to traverse the area). This approach protects the cable from adverse weather conditions, wildlife, and falling branches, making it the ideal selection for the majority of acreage properties.
• Overhead cable run — While this method is less common in contemporary installations, it may be necessary if you encounter solid rock or challenging terrain that complicates trenching. Overhead installations require adherence to specific clearance heights and support poles, which can significantly elevate overall costs.

For most properties located in Bellingen, Coffs Harbour, and throughout the Mid North Coast, the underground option remains the optimal choice. Your electrician in Bellingen can evaluate your site and recommend the most effective installation route.

Create a Dedicated Sub-Board for Efficient Shed Power Management

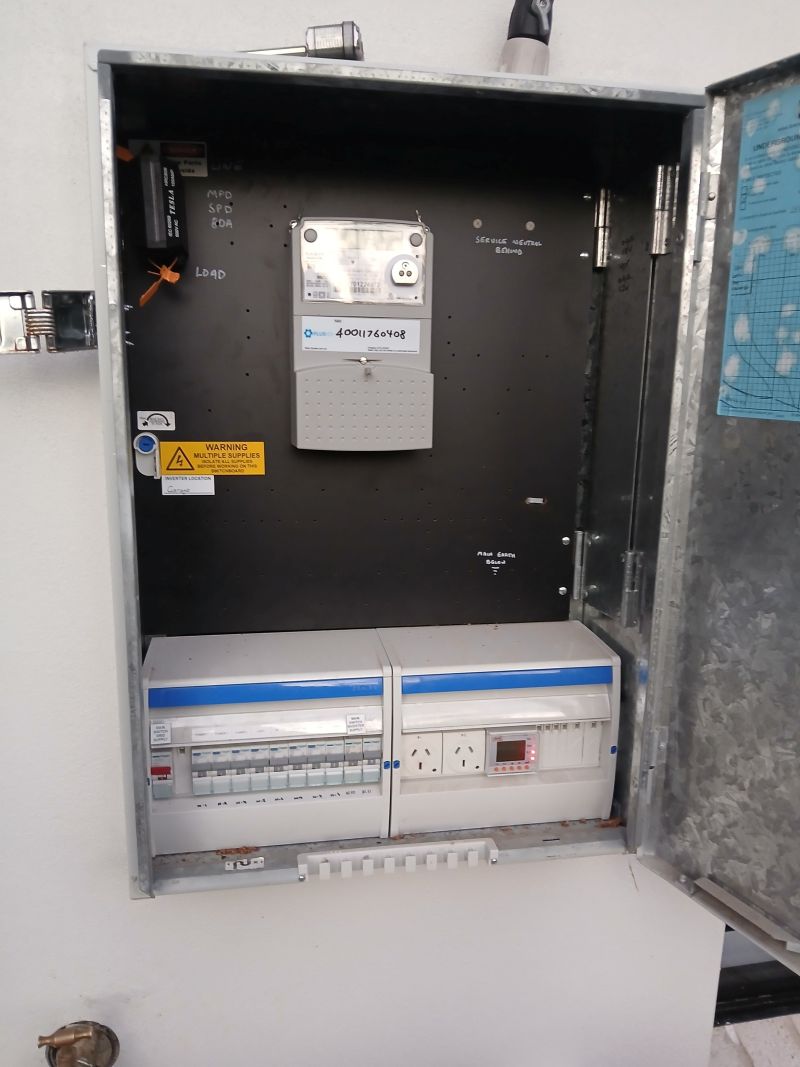

Simply running a single cable to the shed is insufficient; you must also establish a dedicated sub-board, often referred to as a distribution board. This setup acts as a mini switchboard within the shed, effectively managing all electrical circuits and ensuring safe operation.

Your sub-board will typically include the following essential components:

• Main switch — This switch allows you to isolate all power to the shed independently from the main house, adding an essential layer of safety.
• RCDs (safety switches) — These devices are mandatory under NSW electrical regulations. They instantly cut power within milliseconds if a fault occurs, which is crucial in a shed environment that is often exposed to moisture, dust, and potential damage.
• Circuit breakers — These provide individual protection for each circuit in your shed, covering lighting, general power, and dedicated tool circuits, ensuring that you can operate multiple devices without risk of overloading.

If your house’s main switchboard is older, your electrician may also recommend upgrading the switchboard to accommodate the additional load directed to the shed, ensuring that all connections remain safe and efficient.

What Key Equipment Should Be Installed Inside Your Shed for Optimal Functionality?

The specific installations your electrician carries out inside the shed will be customised based on its intended purpose. Here’s a comprehensive breakdown of what these installations typically include.

Enhancing a Basic Storage Shed Setup for Maximum Usability

If your shed is primarily for storing tools, a ride-on mower, or general equipment, consider implementing the following installations for optimal functionality:

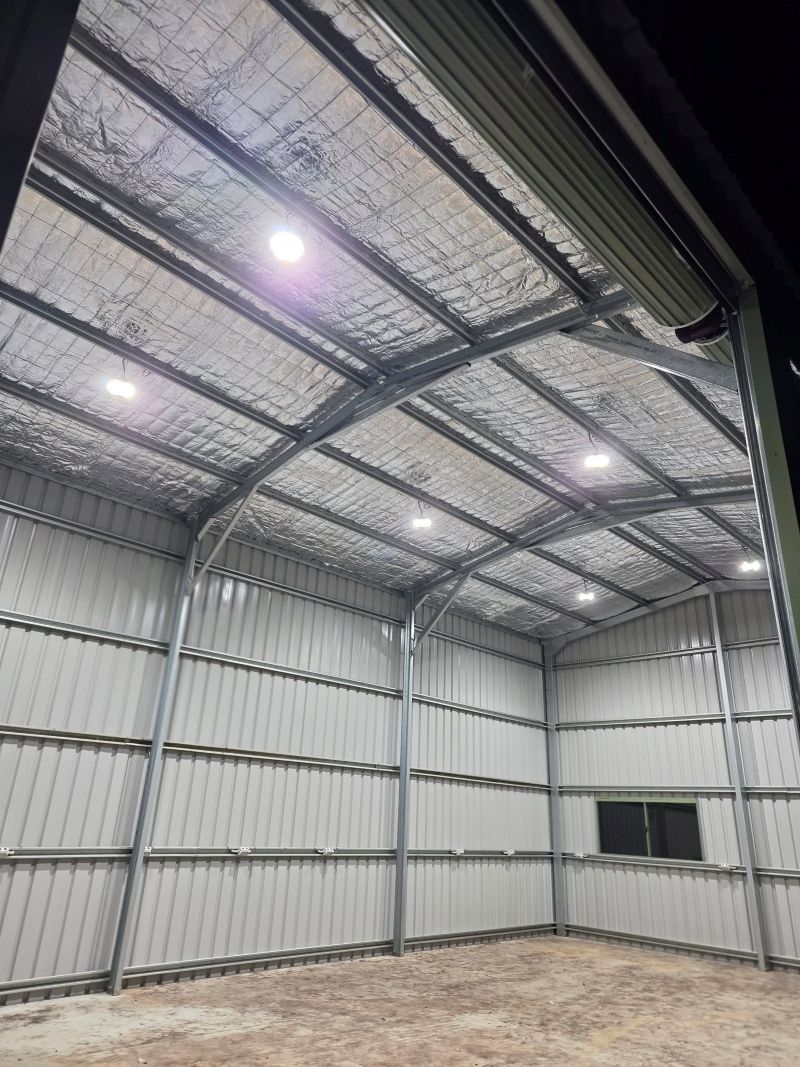

• LED batten lights — Installing one or two ceiling-mounted LED battens can effectively illuminate the entire shed space. Your trusted electrician can provide guidance on the most suitable lighting layout based on the shed’s dimensions and your specific storage needs.
• Two to four general power points — This quantity is typically sufficient for plugging in chargers, radios, or a drop saw whenever required. Standard power points and switches will operate on a single circuit, ensuring versatility for various tools and devices.
• External light — An outdoor-rated LED light above the door ensures you can access the shed safely without fumbling in the dark, enhancing both safety and convenience.

Designing a Powered Workshop Shed for Enhanced Efficiency

If you frequently use power tools such as drop saws, bench grinders, or dust extractors, your wiring requirements will extend beyond basic setups and require careful planning:

• Multiple circuits — Establish separate circuits for lighting, general power, and specialised power tool outlets. This configuration prevents lights from flickering every time you activate a saw, ensuring a stable working environment.
• Higher-rated power points — Install 15-amp or 20-amp outlets to effectively accommodate heavier tools, ensuring you have the appropriate power supply for your equipment.

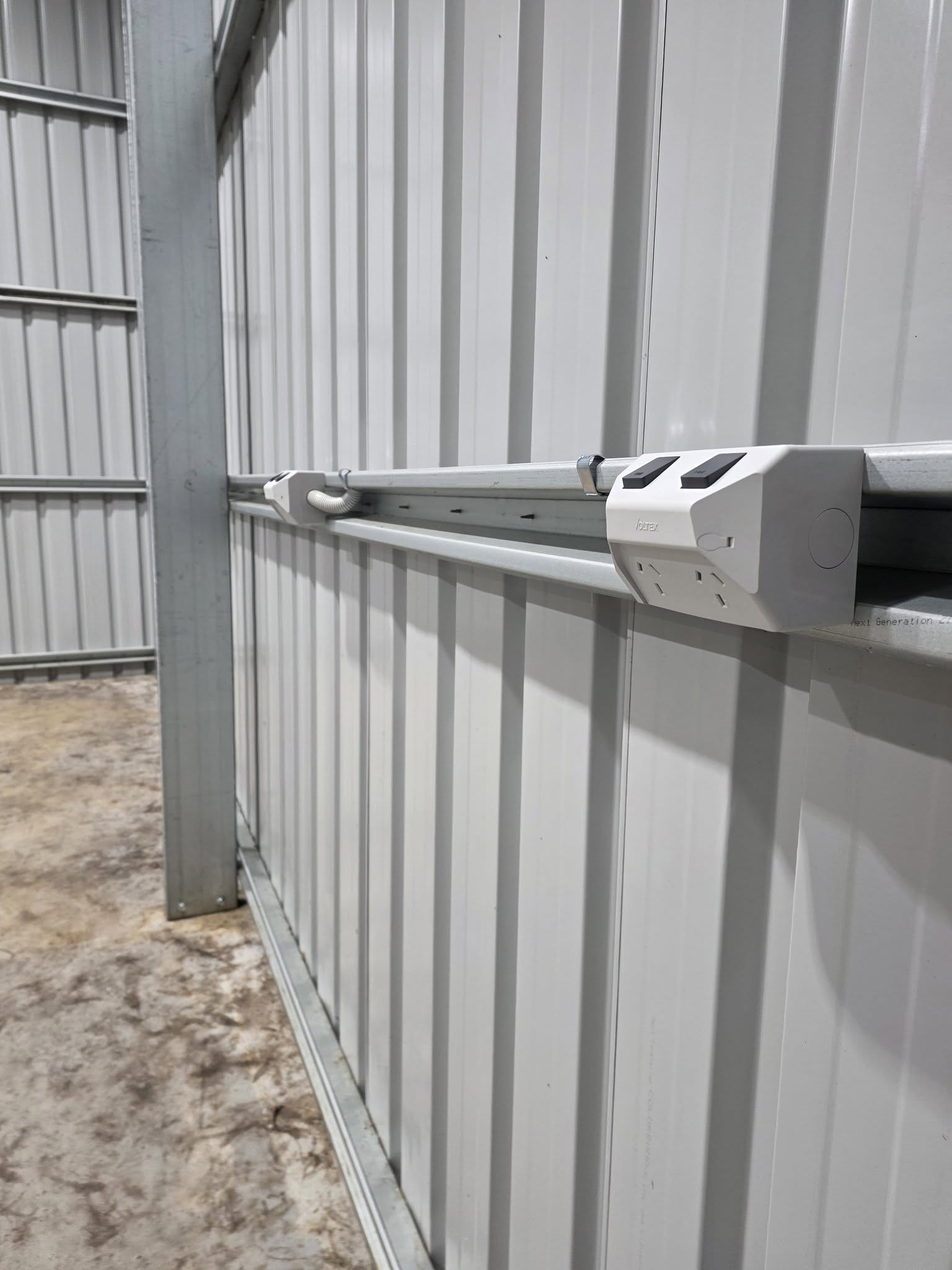

• Increased number of power points with optimal placement — Ensure outlets are positioned at bench height rather than only at skirting level, facilitating ease of use based on your workbench arrangement.

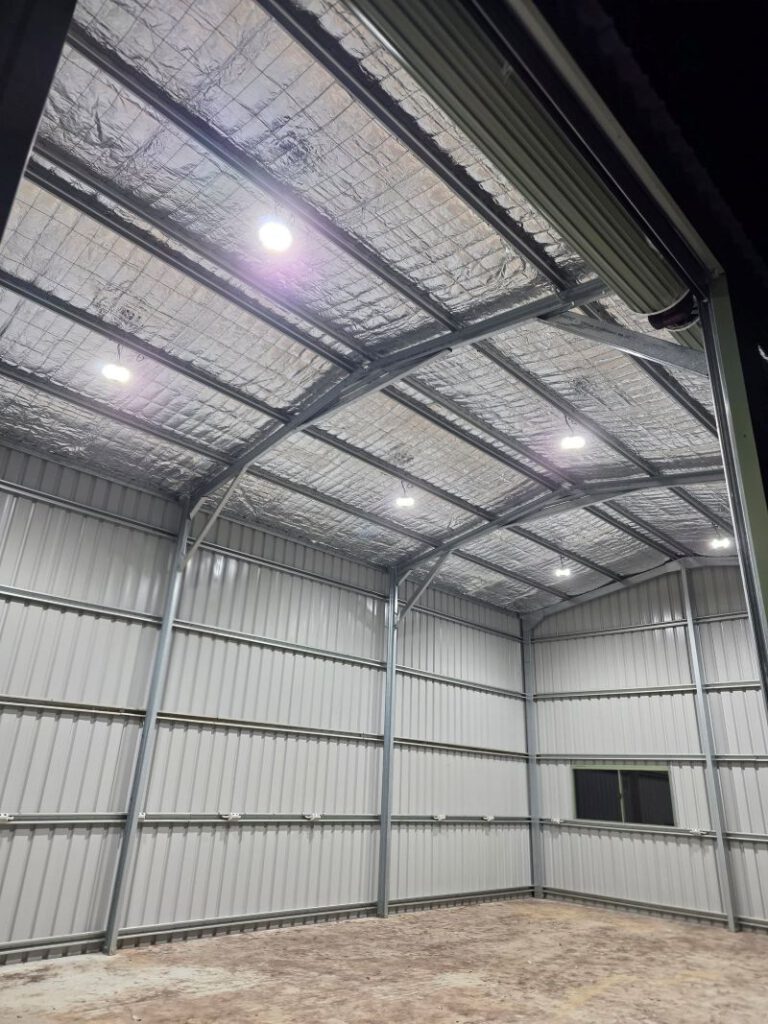

• Dedicated lighting — Provide brighter, targeted lighting over work areas, utilising LED high-bays for larger sheds to improve visibility and safety.

For more detailed guidance on establishing dedicated circuits for heavy tools, refer to Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which discusses effective wiring solutions comprehensively.

Equipping a Full Workshop with Essential Three-Phase Power for Heavy Machinery

If your activities involve operating heavy machinery such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power may not suffice. This is where three-phase power becomes essential to meet your demands.

Three-phase power offers a more stable and higher-capacity power supply, enabling you to operate multiple heavy-duty machines simultaneously without compromising performance. Your electrician will need to:

• Organise a three-phase supply from your energy distributor (this process can take several weeks in the Mid North Coast region).
• Install a three-phase sub-board in your shed, complete with the necessary breakers and RCDs to ensure safety and compliance with regulations.
• Utilise heavier cabling — Be aware that three-phase cable runs can be more costly, especially over extended distances, so careful planning is essential.
• Set up three-phase outlets — These heavy-duty sockets are specifically rated for the equipment you intend to operate, delivering the necessary power for effective functioning.

If you are unsure whether you require three-phase power for your shed setup, read Do I Need Three-Phase Power on My Property? — this resource outlines when it is beneficial and when a well-configured single-phase system will suffice. We also provide complete three-phase switchboard installation if that aligns with your needs.

Prioritise Surge Protection to Safeguard Your Shed’s Equipment

Properties on the Mid North Coast often experience intense lightning storms. A direct or nearby strike can potentially damage everything in your shed, including tools, chargers, fridges, and other devices plugged in, leading to costly repairs and replacements.

Investing in a reliable surge protection device, installed within your sub-board, serves as a cost-effective insurance policy against electrical surges. It absorbs voltage spikes before they can reach and damage your valuable equipment. For sheds housing costly tools or a workshop setup, this precaution proves invaluable and could save you substantial expenses in the long run.

If your property also utilises a generator for backup power, your electrician can install a generator changeover switch, ensuring that both the shed and your house can safely transition to generator power during outages, maintaining essential operations during emergencies.

What Are the Council Approval and Compliance Requirements in NSW?

Here are several significant considerations to keep in mind when planning your shed wiring:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to save on labour costs, all electrical work — including cabling, connections, and sub-board installation — must be completed by a licensed contractor, who will issue a Certificate of Compliance (CCEW) upon completion.
• Depth of underground cable must comply with AS/NZS 3000 (the Wiring Rules), which your electrician will ensure adherence to during the installation process.
• If the shed is newly constructed, you may require development approval depending on your local council and the shed’s size. While the electrical work itself might not necessitate a separate permit, the overall construction may require one.

Hack-It Electrical Solutions proudly holds the NSW Electrical Contractor Licence #230609C. We provide a compliance certificate for every job we complete, ensuring peace of mind and adherence to local regulations.

Understanding the Costs Associated with Shed Wiring on Acreage Properties

Each shed presents unique challenges — including the distance from the house, whether you require single-phase or three-phase power, the number of circuits needed, and soil conditions that impact trenching. Here’s a realistic cost guide for the Mid North Coast area:

• Basic shed wiring (lighting + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase power, dedicated circuits, and surge protection — Starting from $8,000+

Keep in mind that longer cable runs (50m or more), rocky terrain requiring specialised equipment, or upgrades to three-phase supply will all increase costs. The most effective way to obtain an accurate estimate is to have your electrician visit your property, assess the cable route, and gain a clear understanding of your shed’s intended use and requirements.

If you would like a straightforward quote for your specific setup, feel free to call us at 0402 079 803 or contact us here.

Addressing Frequently Asked Questions About Shed Wiring in NSW

Can I Legally Wire My Shed Myself in NSW?

Absolutely not. All electrical work in NSW must be conducted by a licensed electrician. This includes tasks such as running cables to the shed, installing the sub-board, power points, lighting, and more. Engaging in DIY electrical work is illegal and poses significant risks to both you and your property. Your electrician will issue a Certificate of Compliance upon completion of the work, ensuring that everything meets safety standards.

How Deep Must Underground Cable Be Buried to Meet Safety Standards?

According to the Australian Wiring Rules (AS/NZS 3000), underground cable installed in conduit should be buried a minimum of 500mm deep under normal conditions. If vehicles are expected to drive over the route, the cable must be buried deeper, typically around 600mm or more. Your electrician will determine the appropriate depth based on your specific property circumstances, ensuring compliance with safety regulations.

Do I Need a Separate Meter for My Shed in NSW?

<pIn most instances, the answer is no. The shed’s sub-board connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed serves as a standalone dwelling or commercial premises — this consideration involves discussions with both the council and your energy distributor to ensure compliance with local regulations.

How Long Does It Typically Take to Wire a Shed on Acreage?

A basic shed wiring job, which includes trenching, cable installation, sub-board setup, lighting, and power points, typically takes between one to two days once the trench is prepared. If you’re digging the trench yourself, your electrician can provide guidance on the precise route and depth before you begin. Keep in mind that three-phase jobs may take longer due to the need to arrange the supply connection with the distributor first.

Can I Run Power From the Shed to Other Buildings on My Property?

Yes, you can. However, each additional building will require its own appropriately rated cable run and may need its own sub-board depending on the load. Your electrician can design a comprehensive layout across multiple buildings to ensure that the cabling and switchboard capacity are sufficient from the outset, rather than trying to add components later, which could create issues with power distribution.

Ensure Your Shed Wiring is Professionally Installed for Optimal Safety

If you are located on acreage near Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere across the Mid North Coast, Hack-It Electrical Solutions is here to assist you in setting up your shed correctly — whether it involves a basic lighting and power setup or a comprehensive three-phase workshop installation tailored to your specific needs.

Give us a call at 0402 079 803 or reach out through our website to schedule a site visit. We will survey your property, determine the optimal cable route, and provide you with a straightforward quote that meets your requirements.
