Ducted and Split Air Conditioning in Tarragindi: Installation Services

Precision Electrical & Air has expertly installed a dual air conditioning system at a residential property in Tarragindi. This project encompassed the supply and installation of a Daikin ducted air conditioning system for the upper floor, complemented by a Daikin high-wall split system in the living area on the lower floor.

Expert Installation of the Daikin FDYAN160AV1 16.0kW Ducted Air Conditioning System

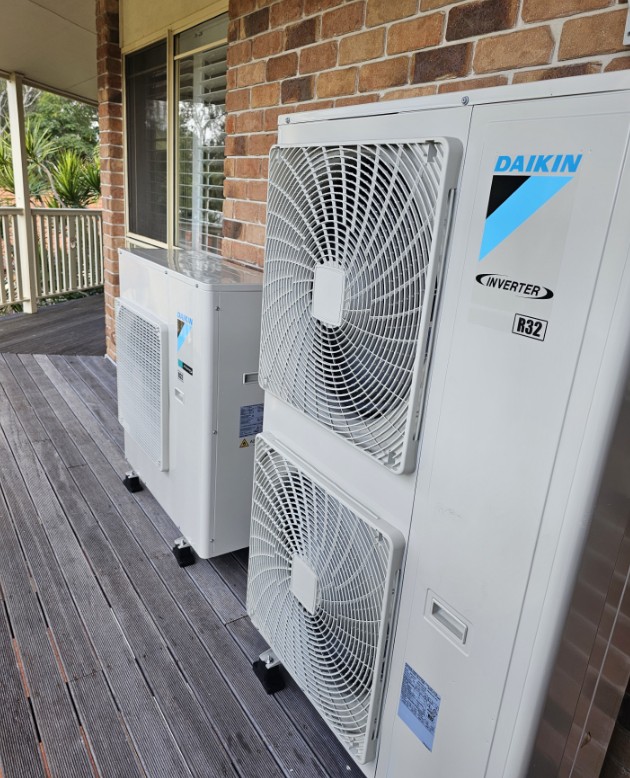

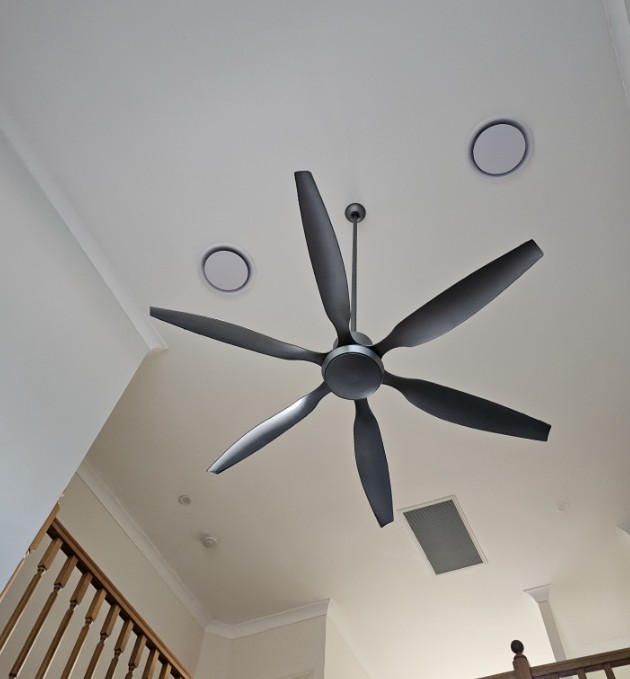

The skilled team at Precision Electrical & Air meticulously installed the Daikin FDYAN160AV1 16.0kW ducted air conditioning system. The indoor unit was strategically positioned within the ceiling space above the void, while the condenser was securely placed on the front balcony wall using rubber feet to minimise vibrations. The connection between the indoor and outdoor units was expertly concealed within ducting as it exited the ceiling space.

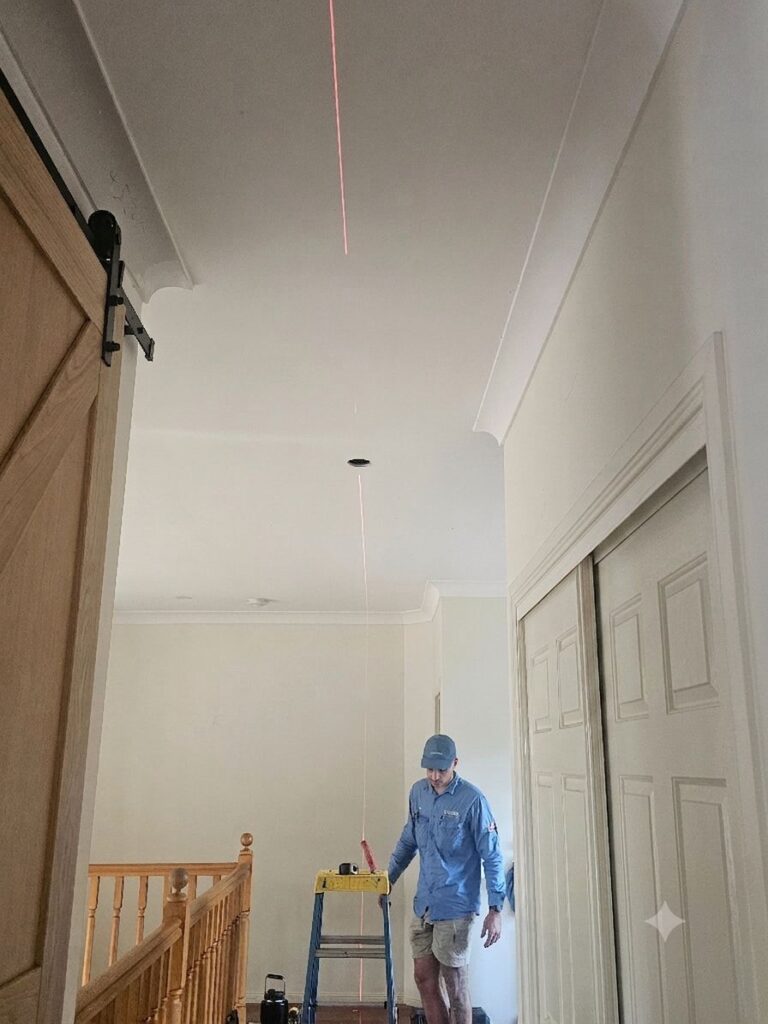

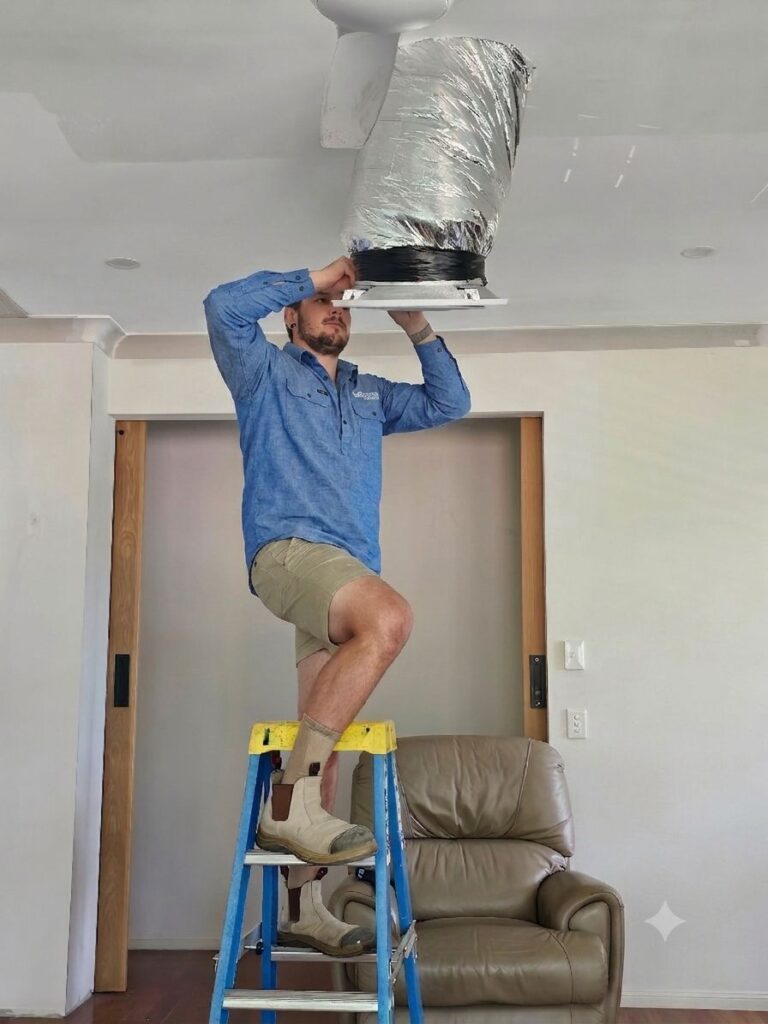

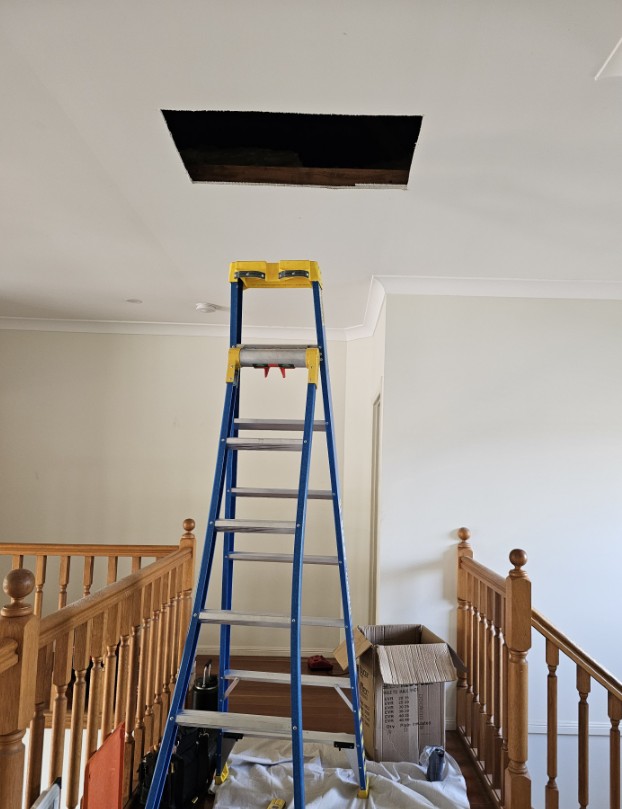

To facilitate effective drainage, two drainage systems were implemented, directing water from the indoor unit and its safety tray to the external gutter. A comprehensive network of ducting, branch take-offs, zone motors, and air plenums was meticulously installed throughout the ceiling space, all connecting back to the indoor unit. A return air grille was strategically located in the upstairs hallway to enhance air circulation and system efficiency.

A dedicated electrical sub circuit was created, extending from the switchboard to the outdoor unit, featuring an NHP isolation switch mounted conveniently next to the condenser. A MyZone Multipoint touchpad zone controller was installed in the upstairs hallway, allowing for improved management of the air conditioning system across its various zones.

Skilled Installation of the Daikin FTXV80W 8.0kW High-Wall Split System Air Conditioning

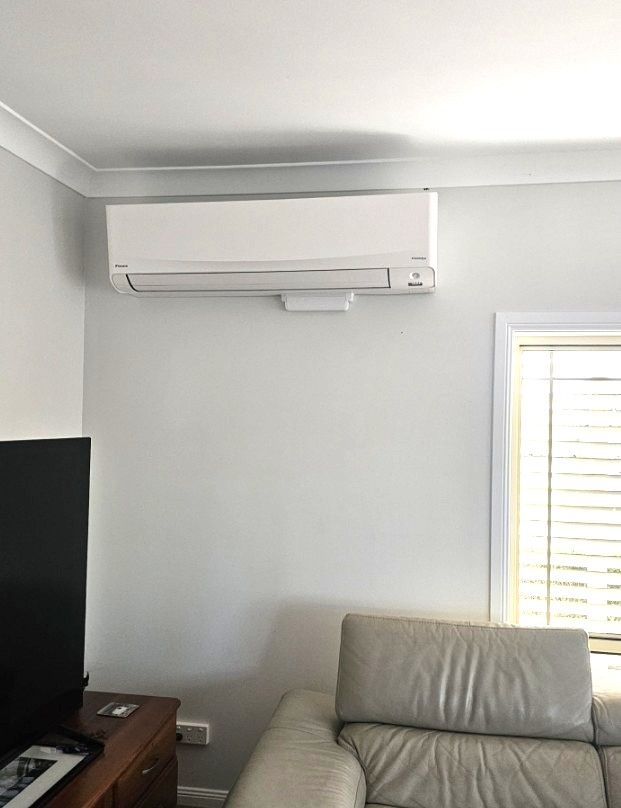

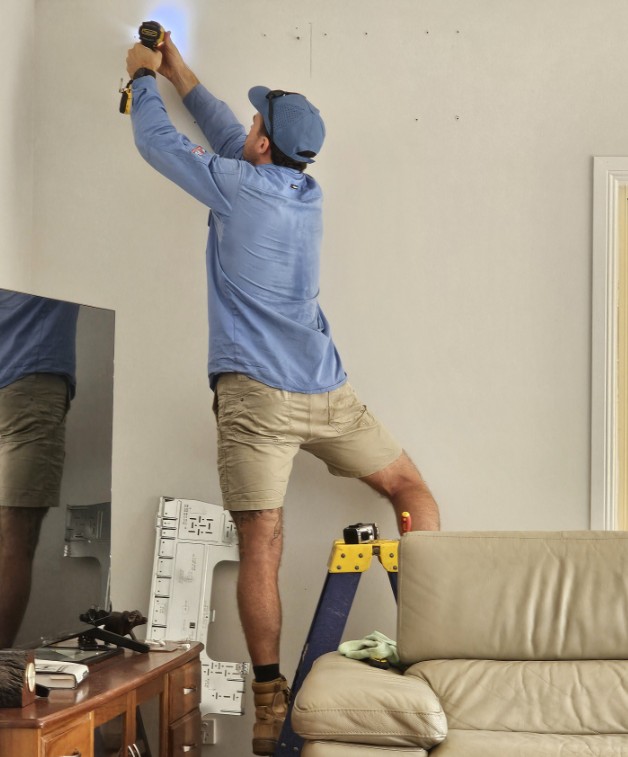

In the downstairs living area, Precision Electrical & Air executed the installation of the Daikin FTXV80W 8.0kW high-wall reverse cycle split system. This process involved the installation of new ducting, interconnect cables, and copper pair coils, which are essential for connecting the indoor and outdoor units, with the condenser mounted on rubber feet to further dampen vibrations.

A dedicated electrical circuit was established from the switchboard to the condenser, which included an NHP isolation switch for enhanced safety. To effectively manage condensation, an Aspen Silent+ Mini condensation pump was positioned beneath the indoor unit and linked to the nearest stormwater downpipe. The entire system underwent rigorous commissioning to ensure optimal performance levels.

Overview of Installation Outcomes

This installation has provided the property with efficient zoned ducted heating and cooling for the upper level, alongside a dedicated high-wall split system for the living area downstairs. Both Daikin systems were installed in accordance with manufacturer specifications, ensuring all electrical circuits and drainage systems were correctly configured and fully operational.
