Dedicated Circuits for Heavy Tool Workshop Applications

If you own a shed on a rural property and are contemplating converting it into a fully functional workshop, prioritising the electrical system is crucial.
Utilising equipment such as a MIG welder, air compressor, and table saw on the same circuit as your home can result in significant issues, including tripped breakers, flickering lights, and potentially dangerous overload situations.

This detailed guide examines the crucial aspects of wiring a robust workshop in the rural areas of the Mid North Coast. We will cover essential topics such as dedicated circuits, sub-boards, and the integration of three-phase power for larger machinery. If your requirements are minimal—such as basic lighting and a few outlets—please consult our guide on Shed Wiring on Acreage for a more fitting starting point. This article is tailored for workshops that demand substantial power.

Recognise the Significance of Dedicated Circuits for Your Workshop

Most residential properties rely on multiple power points shared across circuits, which function adequately for low-power appliances like kettles and televisions. Problems arise when attempting to operate a 32-amp MIG welder concurrently with an air compressor. This scenario can lead to serious electrical complications.

Consider the possible repercussions of connecting heavy machinery to household circuits:

• Frequent tripped breakers — A welder drawing over 30 amps on a 20-amp circuit may trip the breaker immediately or, worse, cause the wiring to overheat before the breaker can respond.
• Voltage drops — Extensive cable runs from the main board to the shed can lead to voltage sag, causing your tools to operate at higher temperatures, slower speeds, and ultimately reducing their lifespan over time.
• Power disruptions in the house — Your partner may find themselves in darkness in the kitchen when you activate the compressor, often resulting in unwanted discussions.
• Increased fire hazards — Overloaded wiring within walls and cable runs is a leading cause of electrical fires in rural areas.

Implementing dedicated circuits effectively resolves these issues. Each heavy tool receives its own circuit, appropriately sized for its load, along with its own breaker protection. This ensures that nothing is shared, preventing overloads.

Evaluate the Power Requirements of Common Workshop Tools

Before your electrician can design a suitable circuit layout, it is vital to understand the power requirements of your equipment. Here’s a comprehensive breakdown of typical power draws for common workshop tools:

• MIG welder — Requires between 15A and 32A depending on the model. Larger 240V welders typically operate at the higher end. Three-phase units have different requirements (more on that later).
• Air compressor — Draws approximately 10A to 15A. The startup surge can be considerable—compressor motors often pull 3 to 4 times their running current for a few seconds during startup.
• Table saw — Generally consumes 10A to 15A for a quality cabinet saw. More affordable contractor saws may require less power, but you’re unlikely seeking a budget option.
• Lathe (wood or metal) — Similar to table saws, these typically require between 10A and 15A, with metal lathes usually at the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It must operate continuously while using other tools, so it should be on its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, and also requires a dedicated circuit.

When you calculate the total power draw, it becomes clear that a single 20-amp circuit from the house will be insufficient. A well-equipped workshop can easily demand 80 to 100+ amps across all circuits when operating at full capacity, underscoring the need for strategic planning.

Select the Appropriate Circuit Breaker Size and RCD Protection for Safety

Every circuit in your workshop must have a breaker that matches the cable size and expected load. Your electrician will determine this based on your equipment, but as a general guideline:

• 15A or 20A circuits — Suitable for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Necessary for welders, plasma cutters, and other heavy single-phase machinery.
• Three-phase breakers — Sized according to the specific equipment requirements (details below).

RCD protection is vital. In compliance with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must possess RCD (safety switch) protection. This requirement is mandatory; it serves as a legal obligation designed to mitigate the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs instantly disconnect power if a current leak to earth occurs, which can significantly reduce the risk of minor shocks turning into serious injuries.

Typically, your electrician will utilise a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that integrate both functions. RCBOs are particularly advantageous in workshops because a fault on one circuit does not interrupt power to the others, enhancing safety and reliability.

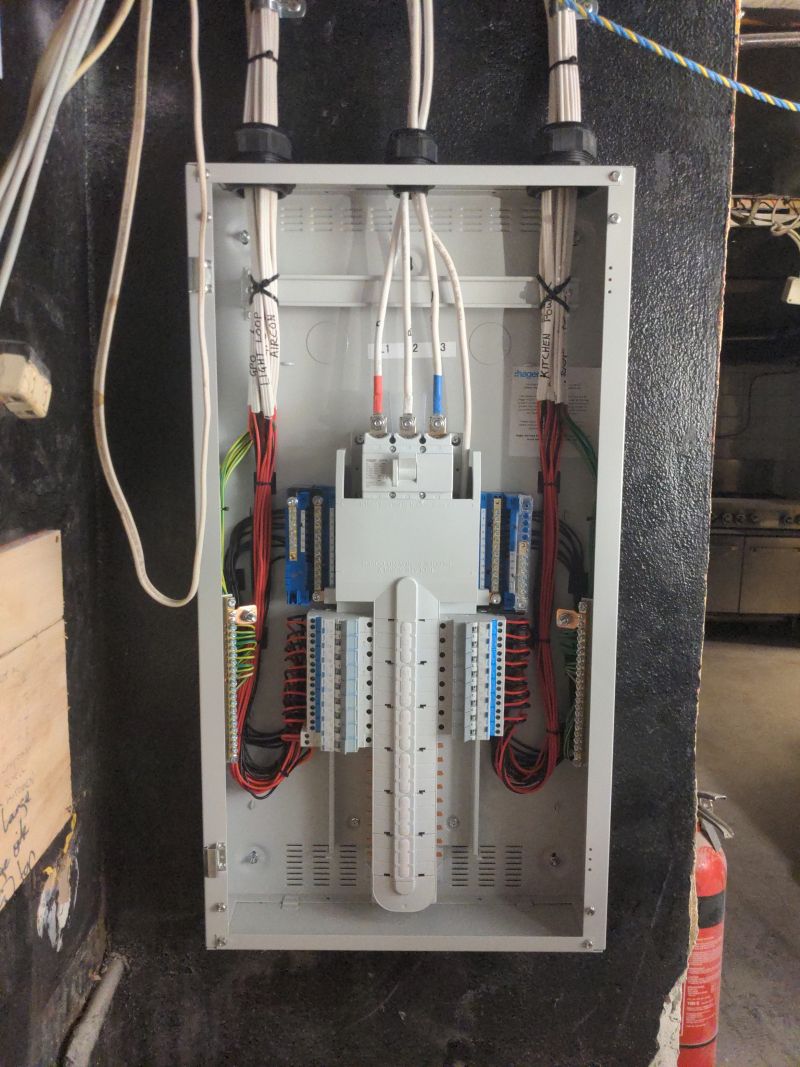

Install a Dedicated Sub-Board to Meet Your Workshop’s Electrical Needs

Instead of running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop is a more efficient solution. Here are the benefits:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This setup reduces voltage drop and decreases cable expenses.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible in the workshop. If a breaker trips, you won’t have to trek back to the house to reset it, saving time and effort.
• Future expansion — A properly sized sub-board allows for additional circuits in the future, making it straightforward to add new tools as your workshop grows.
• Isolation capability — You can shut off all workshop power from a single main switch without affecting the house’s electricity, enhancing safety during maintenance.

If your house switchboard is outdated or operating at full capacity, an upgrade may be necessary before effectively powering the workshop sub-board. Older ceramic fuse boards may not safely accommodate the increased load.

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total anticipated load plus a buffer for future additions, ensuring optimal performance and safety.

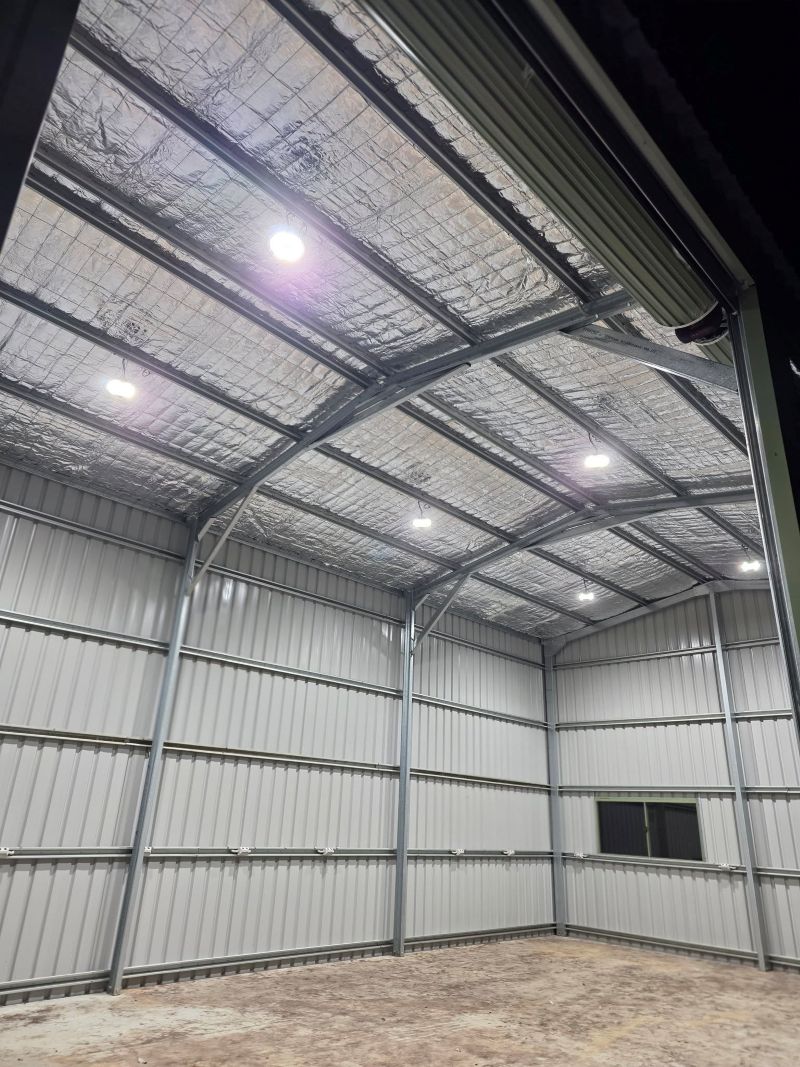

Guarantee Your Workshop is Well-Lit for Safety and Efficiency

Sufficient lighting is essential for safety in your workshop. You must be able to clearly see your work, particularly around sharp blades and hot materials. Here are some key lighting considerations:

• High-lumen LED battens — LED panels or battens provide bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure clarity.
• Dust-proof fittings — Regular lights can become clogged with sawdust and metal shavings. Opt for IP-rated fittings that are resistant to dust and moisture for longevity and safety.
• Task lighting at workstations — While overhead lighting covers the general area, focused lighting at the workbench, lathe, and drill press is critical for precision work and safety.
• Separate lighting circuit — Lighting should operate on its own circuit, ensuring that you still have light if a power circuit trips. Being left in darkness beside an operating table saw poses a significant safety risk.

We have extensive experience with lighting layouts in commercial spaces. Our team can assist you in developing a workshop lighting plan that significantly enhances your working environment and safety.

Design Efficient Ventilation and Dust Extraction Circuits

When engaging in activities such as woodworking or welding, ensuring proper ventilation is as vital as having sufficient power. Dust extraction systems and exhaust fans require their own dedicated circuits because:

• Continuous operation — Your dust extractor must run whenever you’re cutting. It cannot share a circuit with the tool it serves, as this compromises efficiency and safety.
• Motor startup loads — Dust extraction fans and collectors experience significant startup surges, similar to compressors, necessitating dedicated circuits.
• Interlocked switching — In an optimally designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design to ensure functionality.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation. If you’re using a cyclone-style dust collection system, it may require a 20A circuit based on motor specifications, ensuring efficiency and effectiveness in maintaining air quality.

Utilise Three-Phase Power for Enhanced Performance of Heavy Equipment

When you delve into intensive metalwork or operate large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may reach its limits. Three-phase power offers numerous advantages:

• Increased power capacity — Three-phase motors are more efficient and provide greater power without the excessive startup surges common with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically operate on three-phase power for optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, prolonging the lifespan of your tools and machinery.

Accessing three-phase power in rural areas of the Mid North Coast depends on its availability at the street level. Some properties already have a three-phase supply, while others may require a phase converter or a new connection from Essential Energy.
For further information, please refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is available, your workshop will require the installation of a three-phase switchboard with appropriately rated breakers and an effective earthing system to ensure safety and reliability.

Implement Surge Protection to Safeguard Your Equipment

Tools with electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are vulnerable to voltage spikes. Your workshop generates surges every time a large motor starts or stops. Coupled with the voltage instabilities often found in rural power lines, your valuable equipment faces considerable risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This is a cost-effective measure compared to replacing the electronic components of a $3,000 welder or a CNC controller, helping you protect your investment.

If your property is susceptible to storms (common in the Mid North Coast), we recommend adding surge protection at the main switchboard to defend against lightning-induced surges that could damage your equipment.

For properties relying on a generator for backup power, incorporating a generator changeover switch ensures smooth transitions between mains power and generator supply without risking back-feeding or damaging connected equipment, providing peace of mind during power outages.

Consider Additional Features for Your Workshop Electrical Setup

Here are a few more elements to incorporate into your workshop wiring from the outset:

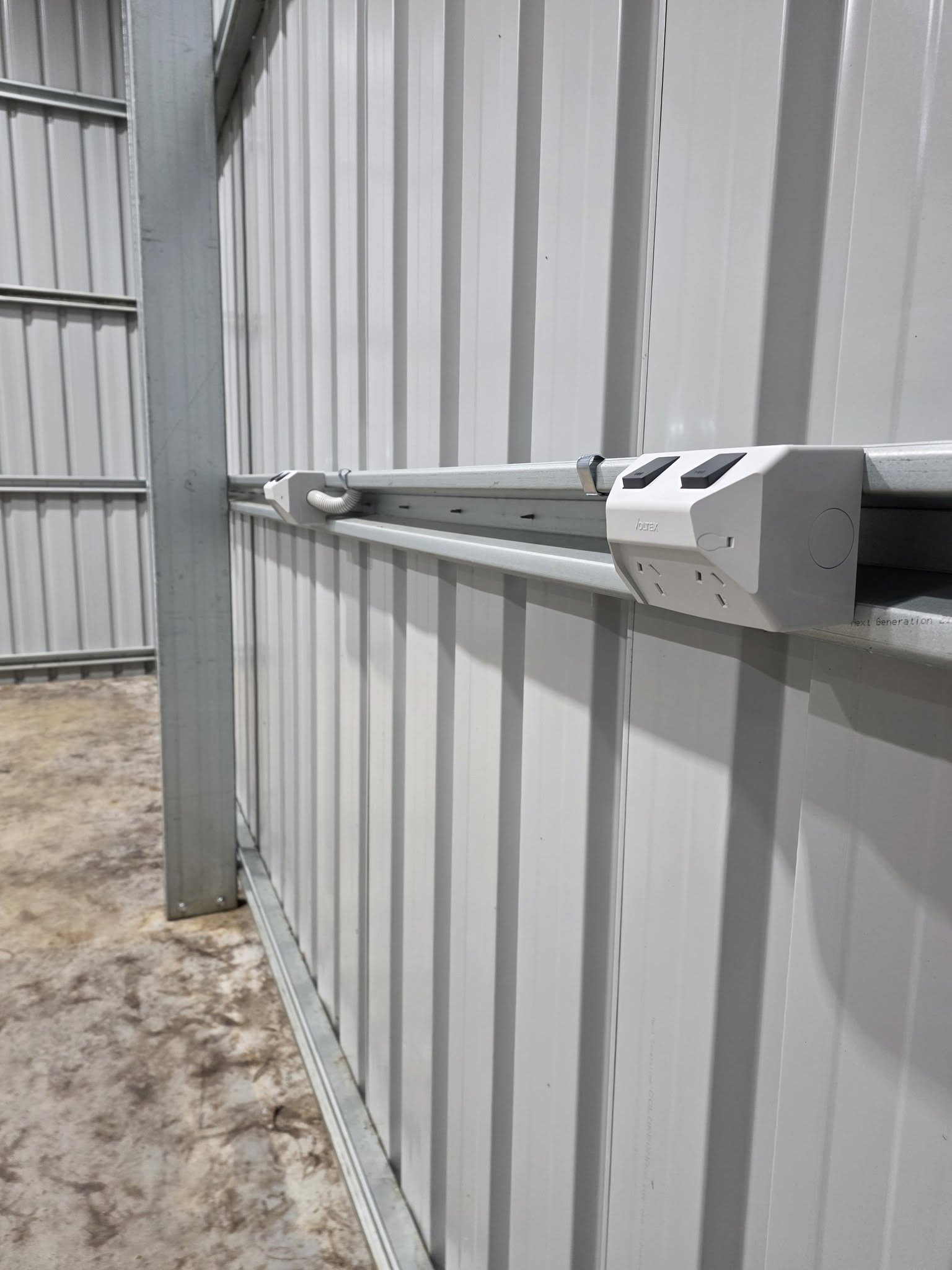

• Ample power points — Install more power points and switches than you anticipate needing. Use weatherproof GPOs if the workshop is open-sided to ensure durability. Consider double power points at every bench and outlets at key machinery locations to enhance accessibility.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. It is far easier to run cables during the initial fit-out than after the walls are finished, preventing future complications.
• External lighting — Include floodlights outside the workshop to facilitate access during early mornings and late evenings, especially in rural areas lacking street lighting, enhancing safety.
• EV or equipment charging — If you’re using electric equipment (battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets, ensuring efficient operation of all devices.

Accurately Estimate the Cost of Your Workshop Electrical Fit-Out

Cost estimates will vary based on workshop size, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from $5,000, providing foundational electrical support.
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from $10,000, ensuring ample capacity for serious workshop needs.
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from $15,000+, accommodating extensive power requirements.

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the need for upgrades from Essential Energy will increase costs. We provide transparent quotes based on your specific workshop and equipment needs—no hidden fees, ensuring you know exactly what to expect.

Important Reminder: All Electrical Work Must Be Conducted by Licensed Professionals

This is an essential point. In New South Wales, all electrical wiring work must be performed by a licensed electrician. This includes installing new circuits, sub-boards, power points, and connecting equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C. We operate throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina, ensuring quality service.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to fines. If someone offers to do the work cheaply without a licence, it’s not a saving—it’s a risk that can have serious repercussions.

Common Questions About Workshop Electrical Needs

Can I Operate My Welder from a Standard Power Point?

Small stick welders (up to around 140A output) can be used with a standard 10A or 15A power point. Any larger units necessitate a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately—or potentially cause the wiring to overheat if the breaker is faulty. If you weld regularly, it’s crucial to have a dedicated 32A circuit installed to ensure safe operation.

How Many Circuits Are Typically Required in a Workshop?

The number of circuits needed depends on your tools, but a well-equipped workshop typically requires a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, as well as a couple of spares for future additions. We tailor the design based on your specific equipment list, ensuring you have everything you need.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops operate adequately on single-phase power with dedicated circuits. Three-phase power is only essential if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Check out our comprehensive guide on Do I Need Three-Phase Power on My Property? to determine if it suits your needs, ensuring you make an informed decision.

Can My Existing Switchboard Support a Workshop?

It’s possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. If it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. We will evaluate this during the quoting process to ensure everything is up to code.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can usually be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting typically takes 3 to 5 days, depending on the complexity and cable run distances. We will provide a timeline along with your quote, ensuring you know what to expect.

Ensure Your Workshop Is Properly Wired for Safety and Efficiency

If you are establishing a workshop on your property and want to ensure it is done correctly from the outset, reach out to us. We will visit your site, assess your space and equipment list, and develop a plan that meets your power requirements without compromising safety or quality, ensuring a successful workshop setup.

Contact Hack-It Electrical Solutions at 0402 079 803 or reach out to us online to arrange a detailed quote and consultation.

We are your local electricians in Bellingen, proudly serving the entire Mid North Coast from Nambucca Heads to Woolgoolga and up to Dorrigo.
