Concrete Floor Thickness for Car Hoist Installation

Essential Factors to Consider for Optimal Car Hoist Installation in Your Garage

When contemplating the installation of a car hoist in your garage, it is vital to ensure that your concrete floor adheres to the necessary specifications for maximum effectiveness. A strong and stable foundation is not only crucial for the hoist’s functionality but also for the safety of your vehicles and the individuals using the equipment. By preparing thoroughly and following the guidelines meticulously, you can significantly improve both the performance and durability of your installation. Neglecting these aspects can result in serious safety hazards and expensive repairs in the future.

Most car hoists require a concrete slab that is at least 100mm (4 inches) thick. This specific thickness is essential as it allows for the even distribution of weight from both the vehicle and the hoist, thereby reducing the risk of cracking or sinking over time. For heavier-duty hoists, it is advisable to opt for a thicker concrete slab, potentially reaching up to 150mm (6 inches), to ensure optimal functionality and maintain the highest safety standards. Always take into account the unique requirements of your garage space and the specific hoist model you plan to install.

Step-by-Step Guide to Accurately Determine the Required Concrete Thickness for Your Car Hoist

The depth of your concrete floor is a critical element in ensuring the safe installation and operation of a car hoist. Several essential factors need to be evaluated when assessing the appropriate thickness for your slab, ensuring it can effectively support the loads it will experience during use. Gaining a thorough understanding of these variables can help you avoid costly errors while enhancing both the safety and functionality of your garage setup for years to come.

Understanding Load Capacity Requirements for Your Car Hoist Installation

Car hoists exert significant stress on the concrete floor beneath them, making it essential to fully comprehend the total weight your concrete floor must support. This consideration encompasses not only the weight of the vehicle but also the weight of the hoist itself, which can substantially increase the overall load on the floor. Accurately understanding these weights is crucial for ensuring a safe and efficient installation.

A standard passenger vehicle typically weighs between 1,500 and 2,000 kg, while the hoist may contribute an additional 500 to 1,000 kg. Moreover, it is prudent to include extra weight as a safety buffer to guarantee that the structure can handle unforeseen circumstances. This proactive approach can protect against potential issues during operation and bolster the overall safety of your installation.

For the majority of home garages, a concrete thickness ranging from 100 mm to 150 mm is generally adequate. However, if you intend to lift considerably heavier vehicles, it may become necessary to consider a thicker slab to ensure safety and stability during operation. Engaging with a structural engineer can provide tailored insights, helping you calculate the precise thickness required based on your unique circumstances and needs.

Exploring the Varied Types of Car Hoists and Their Concrete Thickness Requirements

It is imperative to acknowledge that different types of car hoists come with varying specifications regarding concrete thickness. Two-post lifts and four-post lifts are among the most common choices for homeowners seeking to incorporate a car hoist into their garage setup. Recognising these distinctions can significantly influence your installation process.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate concentrated loads. This ensures that the hoist operates safely and efficiently without compromising the integrity of the concrete.

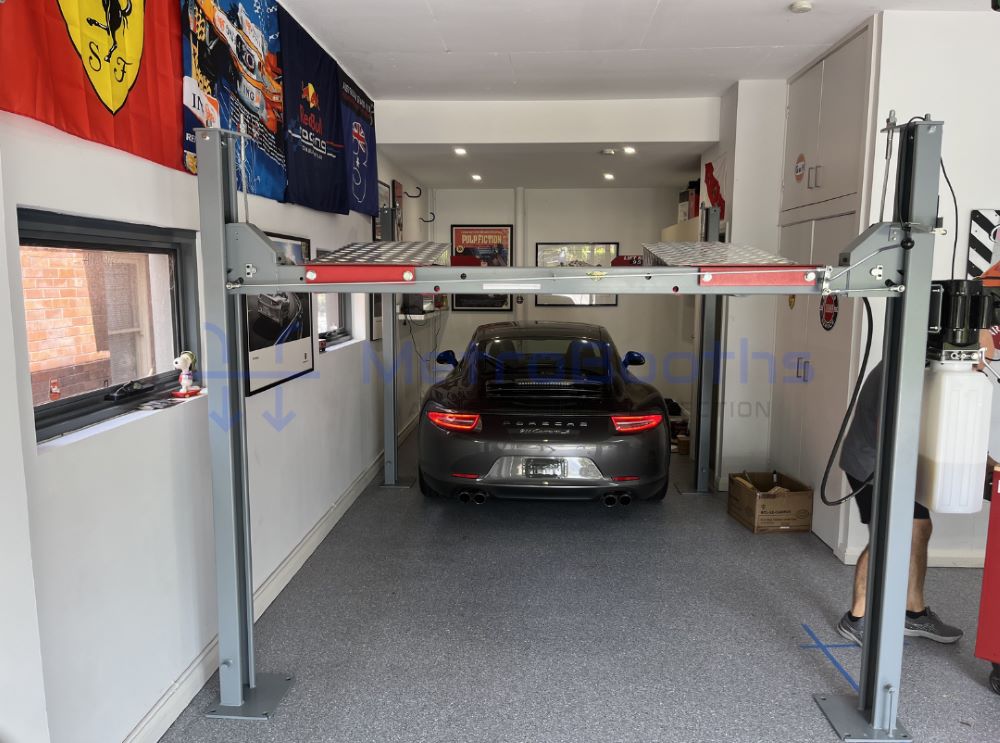

Conversely, four-post lifts tend to distribute weight more evenly across a broader area, enabling them to function effectively with a slightly thinner slab, usually within the range of 100 mm to 125 mm. This understanding is crucial in your planning and installation process, ensuring that you select the appropriate hoist for your garage space.

Always consult the manufacturer’s specifications for the hoist you are considering, as they will typically provide detailed information regarding the minimum concrete thickness necessary for safe operation. Adhering to these guidelines is vital for ensuring optimal performance and longevity of your car hoist.

Keep in mind that these recommendations serve as general guidelines. Your specific requirements may differ based on the layout of your garage and the types of vehicles you plan to lift, making it essential to evaluate your situation carefully.

The Importance of Concrete Strength and Reinforcement Techniques for Car Hoist Installations

The strength of your concrete is just as essential as its thickness. Stronger concrete can often be effectively utilised at a thinner depth while still providing adequate support for heavy loads. This is particularly relevant in the context of a car hoist installation, where load-bearing capabilities are of utmost importance.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry professionals recommend opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting. This level of strength ensures that your slab can withstand the rigours of daily use without compromising safety.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can substantially improve the overall strength of your concrete floor, allowing for the use of a thinner slab while still ensuring it can effectively support heavy loads during operation. This consideration is particularly important for homeowners keen on balancing cost with performance.

For most home garages, SL82 mesh presents a reliable option that provides sufficient strength for the majority of car hoists without incurring excessive costs. If you have concerns regarding potential cracking, consider integrating fibres into your concrete mix. This inclusion can help mitigate the formation and propagation of small cracks over time, thereby enhancing the longevity of your installation.

Key Installation Factors to Ensure Successful Operation of Your Car Hoist

When it comes to the installation of a car hoist, meticulous site preparation and regular floor maintenance are crucial. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your investment and providing peace of mind as you work on your vehicles.

Critical Site Preparation and Concrete Pouring Techniques for Your Car Hoist Installation

Before the installation of your car hoist, it is essential to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use. This meticulous attention to detail is vital for preventing future complications.

For new concrete pours, it is crucial to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability. This foresight will help you avoid any potential issues arising from insufficient slab size.

It is advisable to avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly recommended to consult a professional who can accurately assess its condition and provide guidance on any necessary improvements.

Essential Ongoing Maintenance After Car Hoist Installation

Once your car hoist is installed, it’s critical to regularly monitor the condition of the concrete surrounding it. Be vigilant for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could compromise the functionality and safety of your hoist. Regular inspection can save you from costly repairs in the future.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thus extending its lifespan and maintaining the integrity of your installation.

Regularly check the tightness of the anchor bolts, as loose bolts can damage the concrete and render the hoist unsafe for operational use. This simple maintenance task can prevent costly repairs and ensure safe usage, allowing you to focus on your tasks without worry.

Consider applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner looking to maintain their space.

Frequently Asked Questions About Car Hoist Installation and Concrete Specifications

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts, helping you make informed decisions about your installation.

What is the minimum concrete thickness recommended for a two-post lift installation?

For a two-post lift, the advised minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer’s specifications, as certain models may necessitate thicker slabs for safe operation, ensuring that you comply with all necessary guidelines.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist requires a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It’s wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and the longevity of your investment.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation, thereby ensuring the safety of your equipment and the people using it.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, ensuring that your installation meets all operational demands.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement used. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring that your installation is safe and effective.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following critical factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a wise choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, ultimately protecting your investment and enhancing your garage’s functionality.
